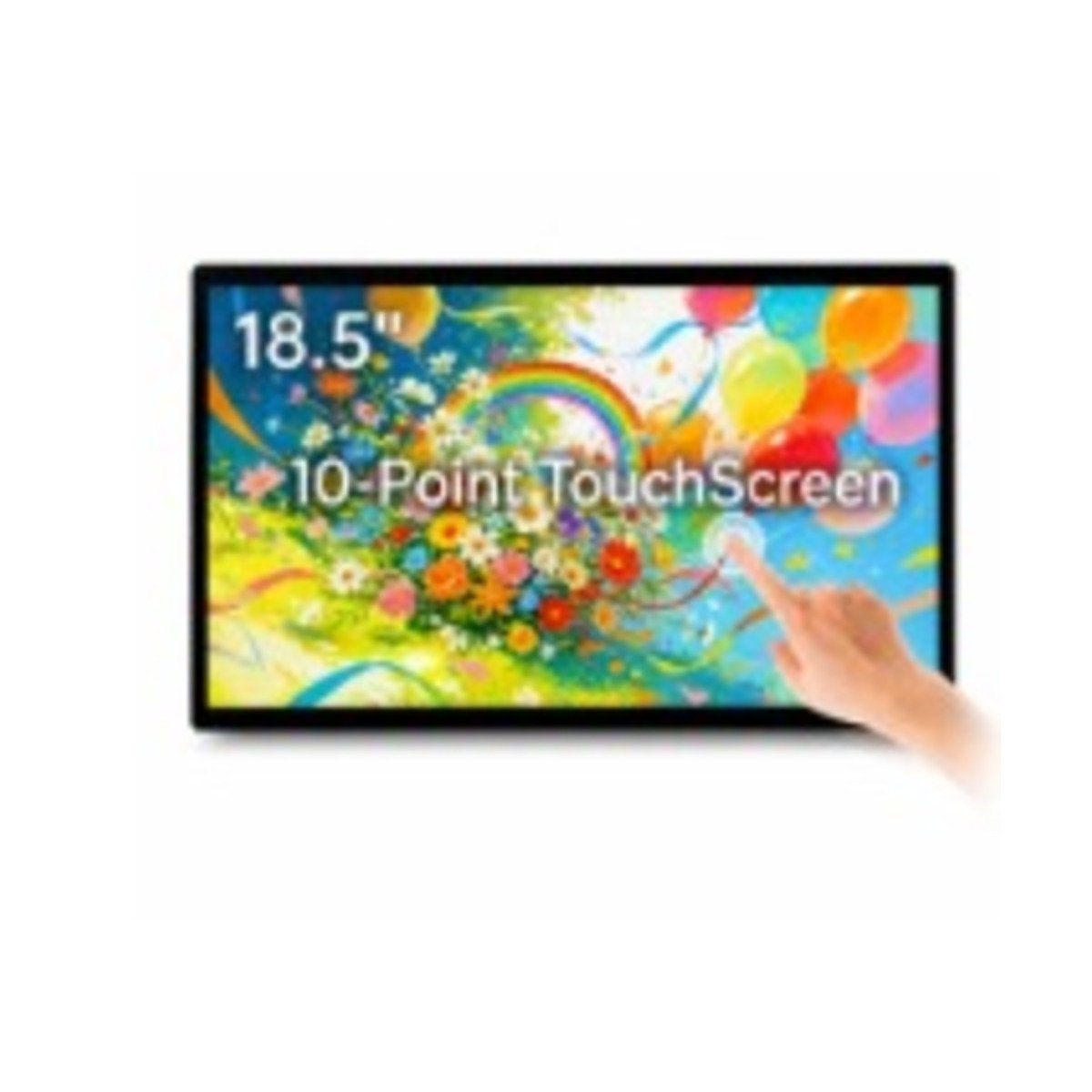

18.5 inch flat capacitive touch display for slot machine cabinet front view

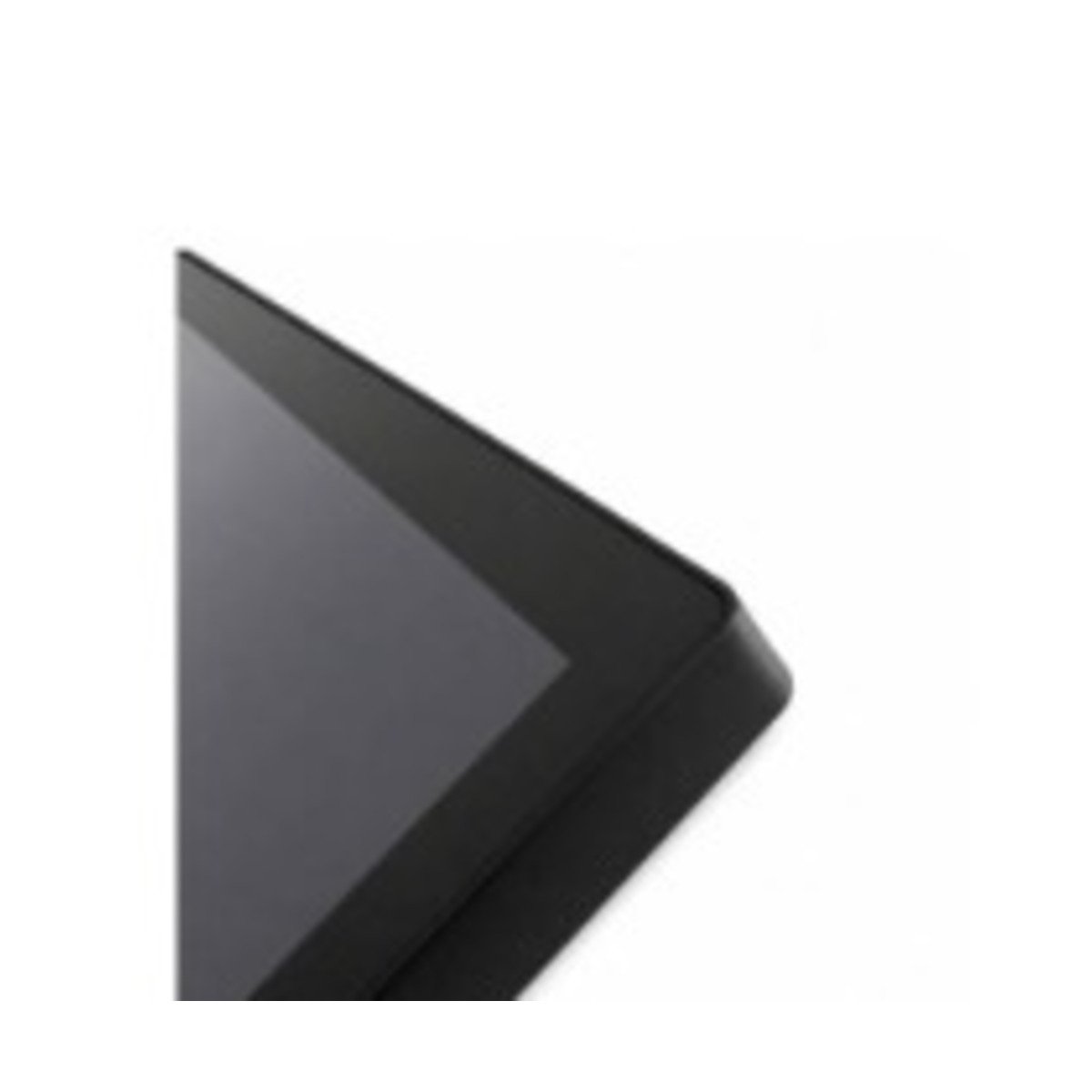

18.5 inch flat capacitive touch display metal frame corner detail

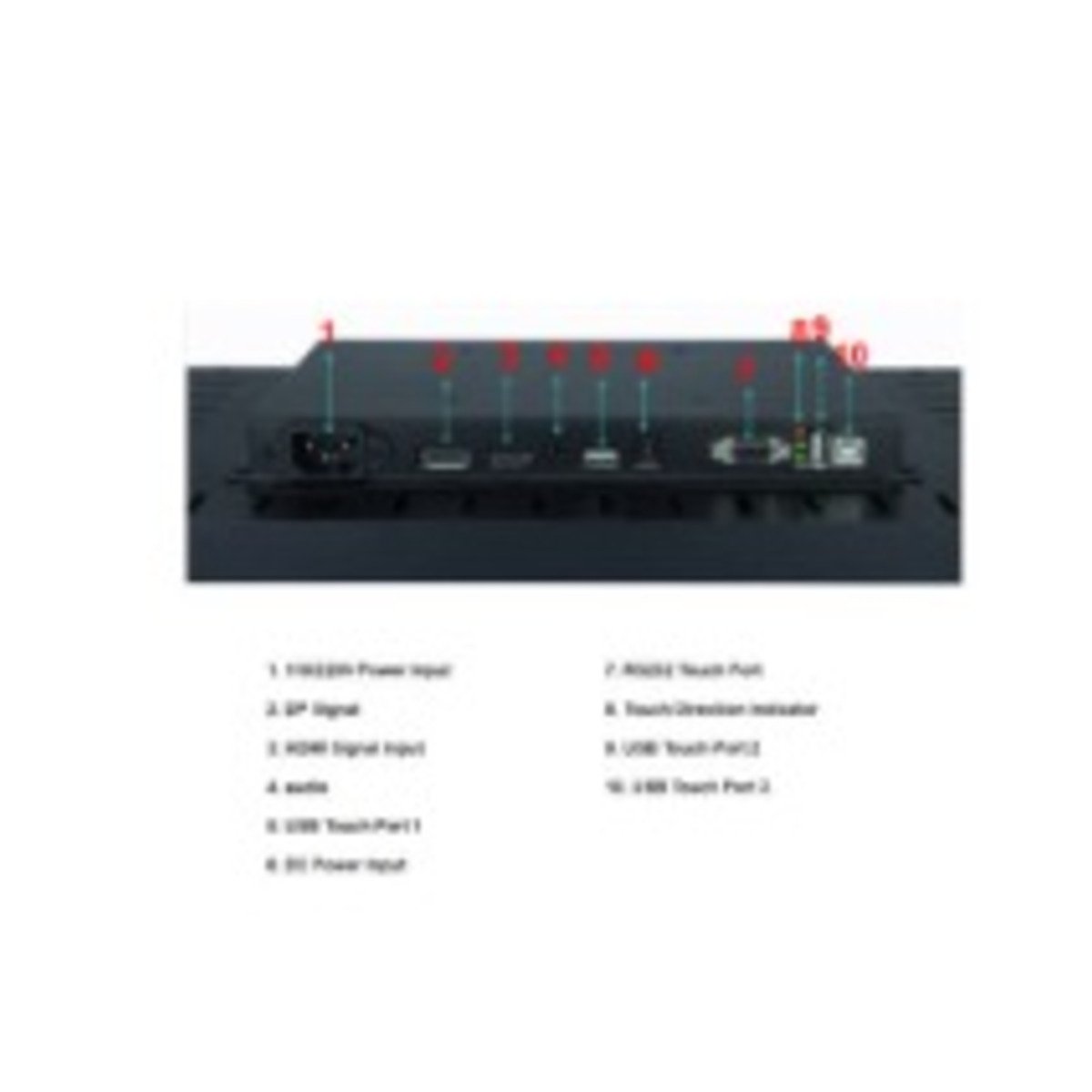

18.5 inch flat capacitive touch display interface panel

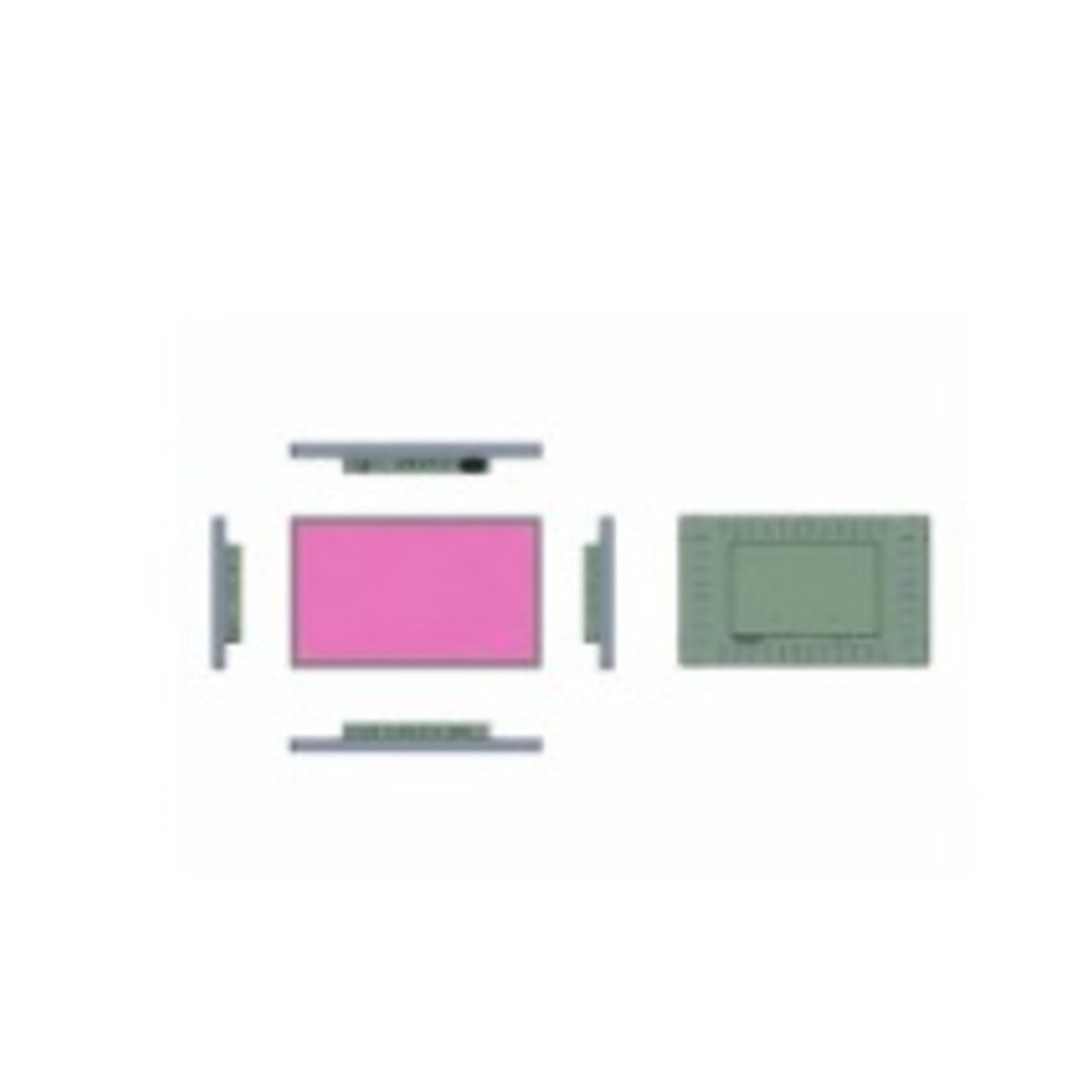

18.5 inch flat capacitive touch display dimensions diagram

18.5 Inch Flat Capacitive Touch Display for Slot Machines

Model DZL-18.5A is an 18.5-inch Full HD flat projected-capacitive touch display for slot machine cabinet integration. 1920 × 1080 Full HD, 10-point capacitive touch, 110/220V AC power input, DisplayPort, HDMI, USB touch and RS232 touch ports. MOQ: 1 piece | 1 Year Warranty.

SKU DZL-18.5A Categories 18.5 Inch, Flat Touch Displays, Slot Machine Touch Displays

This 18.5-inch flat projected capacitive touch display is designed for slot machine cabinet integration. Model DZL-18.5A combines Full HD image output, 10-point projected capacitive touch, an all-black equal-border metal frame and a reinforced metal rear housing.

Request a Quote | Chat on WhatsApp

Product Type

Model	DZL-18.5A
Product Classification	Flat Touch Display
Display Type	Standard Flat Panel Touch Display
Application	Slot Machine Cabinet Integration
Frame Material	Metal

Technical Specifications

Screen Size	18.5 Inch
Aspect Ratio	16:9
Resolution	1920 × 1080 Full HD
Refresh Rate	60 Hz
Brightness	350 cd/m²
Contrast Ratio	1200:1
Response Time	Less Than 5 ms
Viewing Angle	Full Viewing Angle
Display Colors	16.7 Million
Backlight	LED Backlight
Backlight Life	50,000+ Hours
Housing	Metal Rear Housing
Installation	Embedded or Rear Mounting

Capacitive Touch

Touch Technology	Projected Capacitive Touch
Touch Points	10-Point Multi-Touch
Touch Interface	USB / RS232
Glass Thickness	2.0 mm Tempered Glass
Driver	Driver-Free, Plug and Play
Protocol Compatibility	3M / TTL / HID / RS232

Interfaces and Power

Video Inputs	DisplayPort / HDMI
Audio Interface	Audio Interface
USB Touch Ports	3
RS232 Touch Port	Yes
AC Power Input	110/220V
DC Power Input	DC Power Input
Cable Length	1.5 m

Product Dimensions

Overall Size	428.50 × 255.50 mm
Corner Radius	R5.28
Overall Thickness	48.20 mm
Rear Box Protrusion	25.20 mm
Rear Box Size	160.00 × 250.00 mm
Mounting Hole Spacing	100 × 100 mm
Mounting Hole	M4

Packaging and Commercial Information

MOQ	1 Piece
Package Size	52 × 32.6 × 8.6 cm
Packaging	Bag + Foam + Carton
Included Accessories	Power Cord, HDMI Cable, USB Cable and Screws
Optional Certifications	CE / FCC / RoHS / LVD, Depending on the Confirmed Configuration
Warranty	1 Year Warranty

Customization Options

Screen Size	10.1–55 Inch
Appearance and Structure	Bezel, Housing and Color
Mounting Options	VESA, Embedded and Bracket
Display Specifications	Resolution and Brightness
Screen Glass	AG, AR and Tempered Glass
Interface Options	HDMI, VGA, USB and DisplayPort
Brand Customization	Logo, Label and Manual
Packaging Customization	Carton, Foam and Accessories
