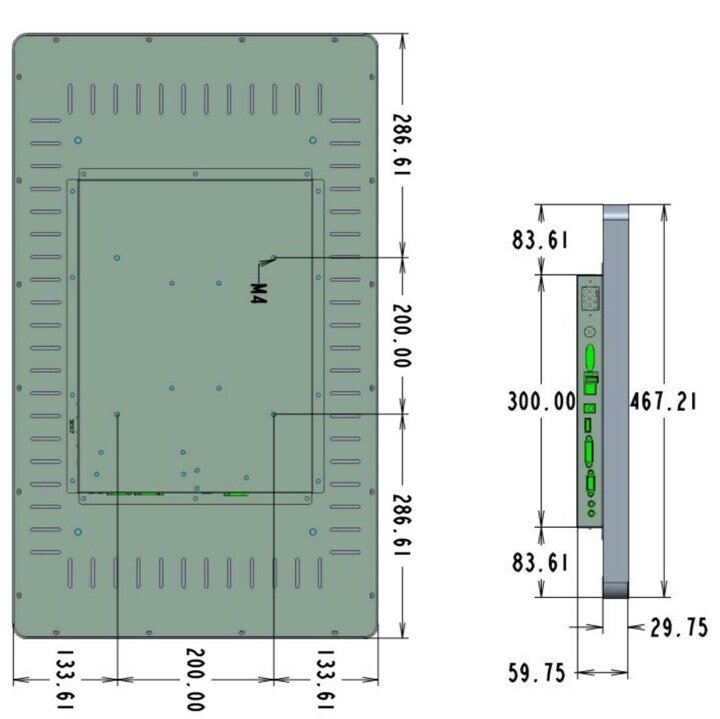

DZLL-32A dimensions and mounting hole diagram

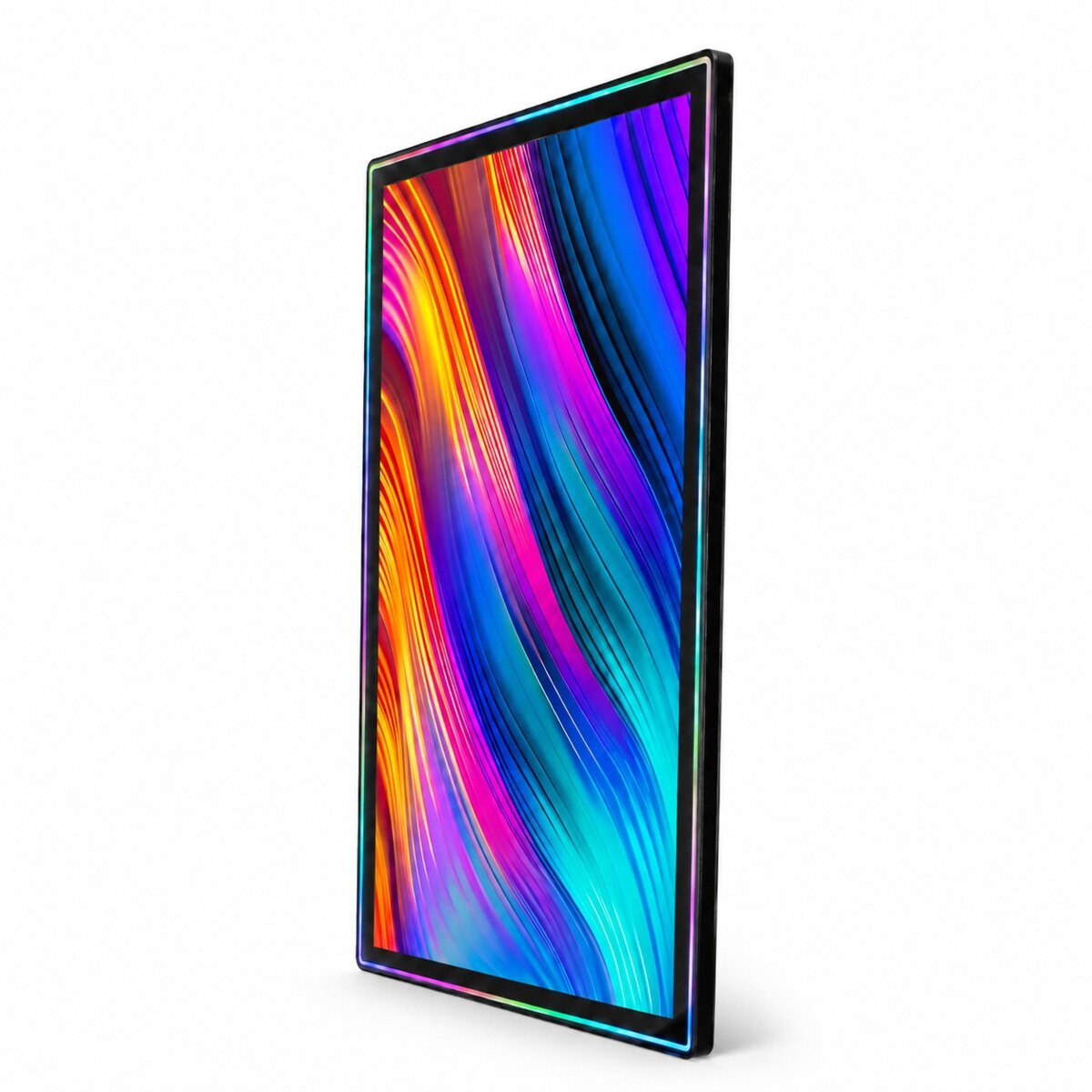

32 Inch LED Lighted Vertical Capacitive Touch Display

Model DZLL-32A is a 32-inch vertical flat LED lighted capacitive touch display with Full HD resolution, 10-point touch, aluminum alloy frame, RGB running light, 200 × 200 mm M4 mounting holes and rear mounting for cabinet integration.

SKU DZLL-32A Categories 32 Inch, Slot Machine Touch Displays, Vertical Touch Displays

This 32-inch vertical flat LED lighted capacitive touch display is designed for slot machine cabinet integration, digital signage and other vertical display applications. Model DZLL-32A combines Full HD resolution, 10-point projected capacitive touch, an aluminum alloy frame and RGB colorful running light.

Request a Quote | Chat on WhatsApp

Product Type

Model	DZLL-32A
Product Classification	Vertical Flat LED Lighted Capacitive Touch Display
Application	Slot Machine Cabinet Integration and Vertical Display Projects
Frame Material	Aluminum Alloy

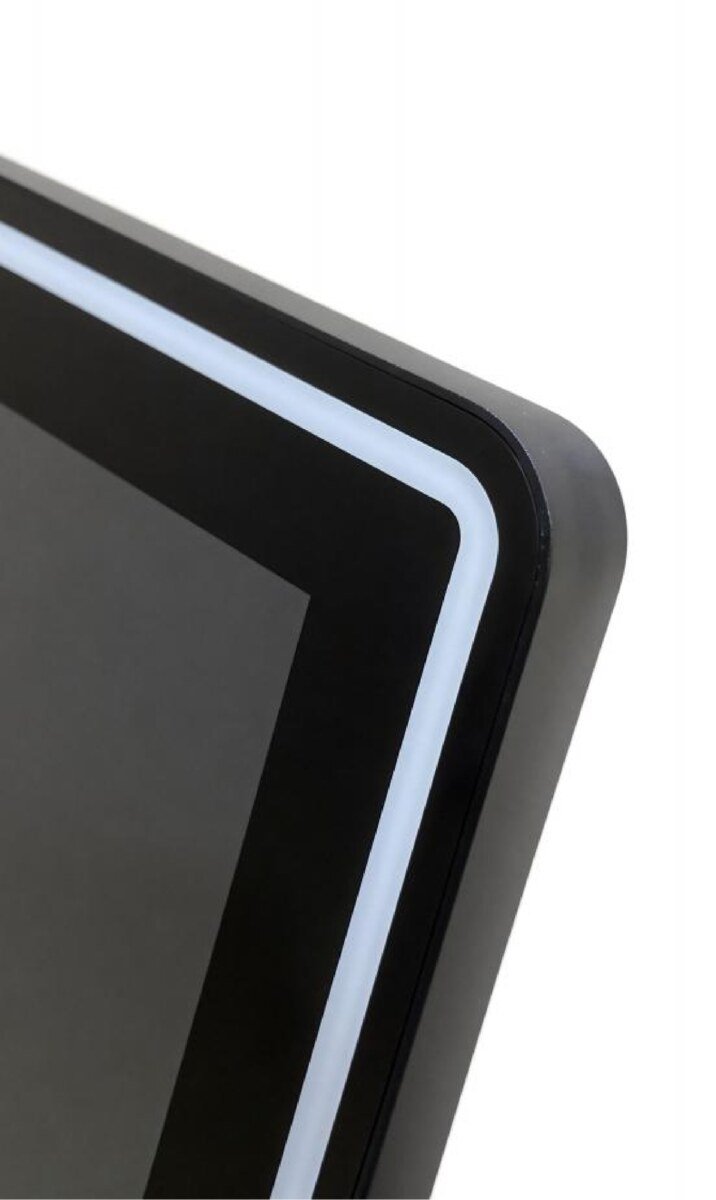

Decorative Frame Lighting	RGB Colorful Running Light
Lighting Control	Remote Control

Technical Specifications

Screen Size	32 Inch
Display Type	LED Lighted Vertical Touch Display
Display Shape	Flat
Aspect Ratio	16:9
Resolution	1920 × 1080
Refresh Rate	60 Hz
Backlight	LED
Backlight Life	50,000+ Hours
Brightness	300 cd/m²
Contrast Ratio	1200:1
Response Time	5 ms
Viewing Angle	Full Viewing Angle, Horizontal/Vertical
Display Colors	1.07B

Capacitive Touch

Touch Technology	Projected G+FF Capacitive Touch
Touch Points	Standard 10-Point Touch
Touch Response Time	Less Than 5 ms
Touch Resolution	4096 × 4096
Touch Interface	USB / RS232
Surface	Mohs 7 Tempered Explosion-Proof Glass
Glass Thickness	2.0 mm
Driver	Driver-Free, Plug and Play
Protocol Compatibility	3M / TTL / HID / RS232

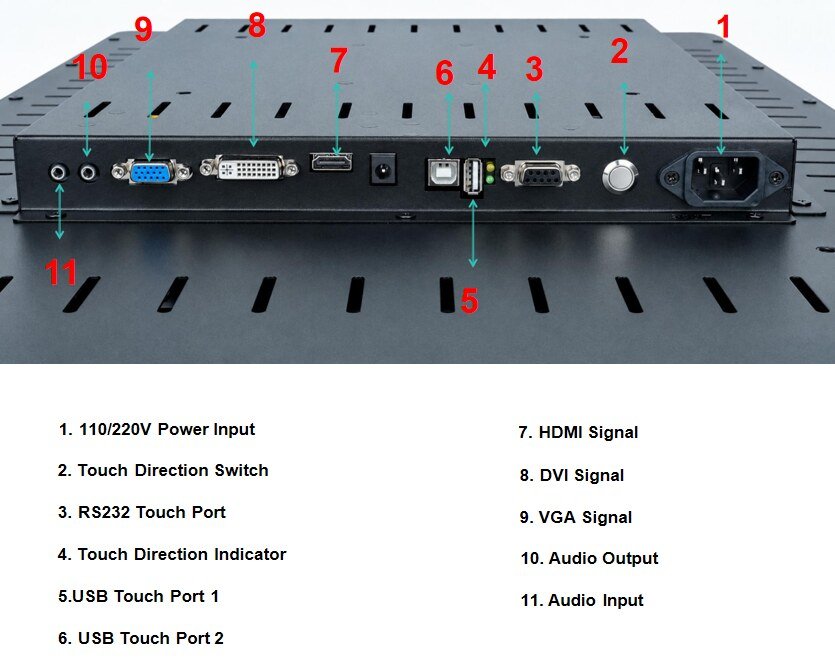

Interfaces and Power

Video Inputs	HDMI / DVI / VGA
Audio Interface	Audio Input / Audio Output
USB Touch Ports	2
RS232 Touch Port	Yes
AC Power Input	110/220V
Cable Length	1.5 m

Product Dimensions and Installation

Overall Size	467.22 × 773.22 mm
Overall Thickness	59.75 mm
Rear Box Protrusion	29.75 mm
Mounting Hole Spacing	200 × 200 mm
Mounting Hole	M4

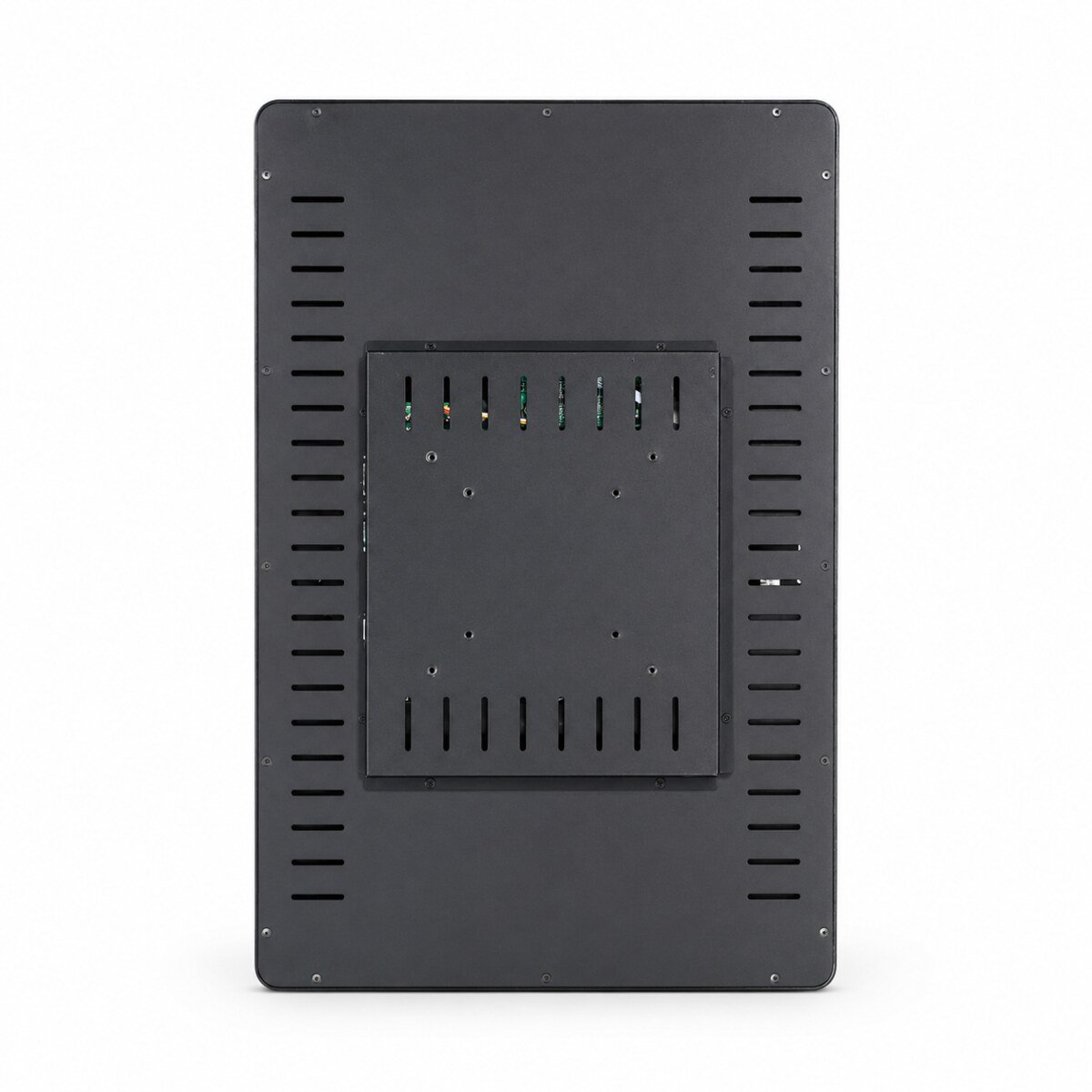

Installation	Rear Mounting
Housing Structure	High-Strength Aluminum Alloy Frame

Packaging and Configuration

Package Size	90 × 14.5 × 58.5 cm
Gross Weight	14.7 kg
Included Accessories	Power Cord, VGA Cable, HDMI Cable, USB Cable, Touch Cable, Remote Control and Screws
Warranty	1 Year

Customization and Supply

Lighting Color	RGB / Customizable
Lighting Mode	Customizable
MOQ	1 Piece
Customization	Display structure, frame, lighting, interfaces, logo and packaging can be reviewed according to the confirmed project requirements.
